1. CASE PRINCIPLE

Vyatta version used: VC 2.2 Aug 30, 2007
We will study here a standardized routing redundancy protocol called VRRP (Virtual Routing Redundancy Protocol). It is based on the Cisco redundancy protocol called HSRP and is the only way to provide redundancy between routers from different manufacturer.
The router having the highest VRRP priority is elected as master. It owns a MAC address which looks like 00-00-5E-00-01-XX and corresponding to the virtual VRRP IP address.
For more information about VRRP, visit the excellent VRRP Wikipedia page.

Read the Vyatta policy about the Community Edition.

2. PICTURE

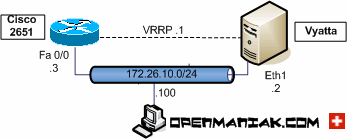

vyatta cisco case study VRRP Functionalities tested:

(click on the web links to have more details about a protocol)

Interface settings
VRRP
Telnet access

3. CONFIGURATIONS

CISCO ROUTER 2651 IOS: 12.4(16)
See the entire configuration
VYATTA ROUTER VC2.2 Aug 30, 2007
See the entire configuration

interface FastEthernet0/0
  ip address 172.16.10.2 255.255.255.0

  vrrp 100 ip 172.16.10.1
  vrrp 100 priority 80
  vrrp 100 preempt
  vrrp 100 authentification 123
edit interfaces ethernet eth1
  set address 172.16.10.3 prefix-length 24
  set vrrp vrrp-group 100
  set vrrp virtual-address 172.16.10.1
  set vrrp priority 100
  set vrrp preempt true
  set vrrp authentification 123

hostname Cisco-router set system host-name Vyatta-Router

line vty 0 4
  no login set service telnet

enable secret password
edit system login user vyatta
  set authentification plaintext-password password

4. SHOW COMMANDS

Vyatta_Router>show vrrp

Physical interface: eth0, Address: 172.16.10.1

Interface state: up, Group: 100, State: master

Priority: 100, Advertisement interval: 1s, Authentication type: simple

Preempt: yes, VIP count: 1, VIP: 172.16.10.1

Advertisement timer: 763s, Master router: 172.26.10.2

Virtual MAC: 00:00:5E:00:01:64

Cisco-Router#show vrrp brief

vyatta output show vrrp brief

Cisco-Router#show vrrp all

FastEthernet0/0 - Group 100

State is Backup

Virtual IP address is 172.26.10.1

Virtual MAC address is 0000.5e00.0164

Advertisement interval is 1.000 sec

Preemption enabled

Priority is 80

Authentication text "123"

Master Router is 172.26.10.2, priority is 100

Master Advertisement interval is 1.000 sec

Master Down interval is 3.687 sec

Packet analysis from Desktop:

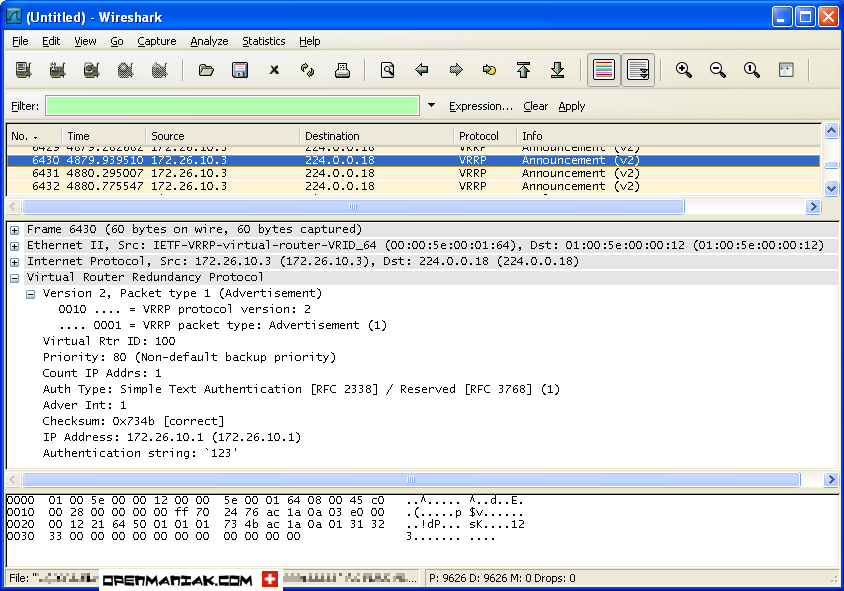

A VRRP packet is captured with the Wireshark tool.

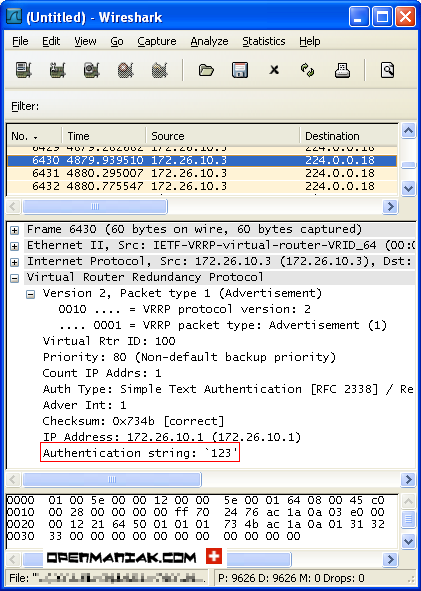

Note that the VRRP authentification string ("123") is sent in clear text.
